stoplog
lecotech stainless steel stoplog
The Lecotech Stoplog is designed for open channel installations for temporary isolation and flow control. Stoplogs are ideal for maintenance and repair works or flood control and diversion. The stoplog is designed to be easy to handle and deploy, without compromising safety or durability. The Logs are stacked on top of each other in the frame guides. The water level is controlled by adding or removing logs. The sealing system is bidirectional (suitable for flows in either direction) and allows to achieve very low leakages rates.
​
The frame can be made of mild steel or stainless steel and it can be designed to be embedded in concrete, wall mount or face mounted in a existing channel.
​
Mild Steel Stoplog applicable for :-
-
Hot Dip Galvanize
-
Epoxy Coating
Stainless Steel Stoplog
Stainless Steel stoplog Panel
Stainless Steel Plate Stoplog
stoplog design features
panel design
-
Lecotech panel for easy handling
-
Stackable Panels : Water Level can be controlled by adding or removing logs.
-
Two different panels (Mild Steel & Stainless Steel) available to always find a solution to the specific requirements.
frame design
-
Mild Steel or Stainless Steel frame guides.
-
Mounting option :
-
Embedded in concrete
-
Wall mounted
-
Face mounted in existing channel
-
sealing system
-
Single direction self adjusting seal to control flow in a single direction.
-
Excellent tightness
-
Vertical seals are placed on the frame guides. Horizontal seals are placed at the top of each panel to prevent leaks between logs.
-
High Molecular Weight Polyethylene (HMWPE) guides are placed on the frame guides to assure no metal-to-metal contact between the frame and the logs, which reduce friction during operation and extends seal life.
seal design
Intermediate Design
Side Design
Bottom Design
lifting beam
-
The lifting beam is built to automatically latch on to the panel when lowered into the guide rail.
-
The beamm is released from the panel by a single tug on a rope tag line.
-
Available in Stainless Steel and Mild Steel Frame.

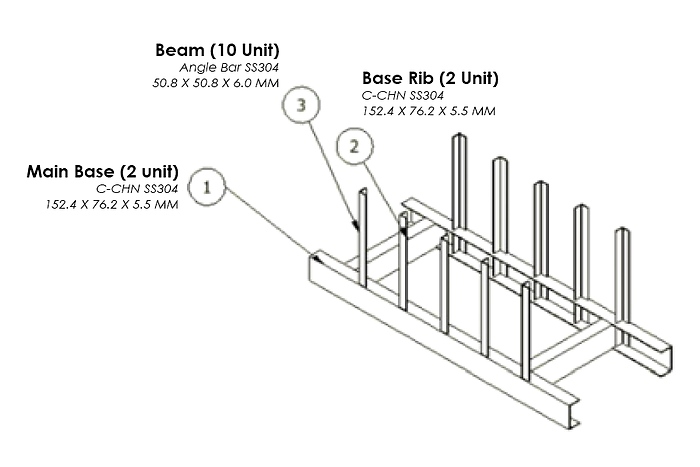

storage rack
-
Material : Stainless Steel / Mild Steel (Hot Dip Galvanized or Epoxy Coating)
-
Permanent Fixing or Removable Type
-
Below part list are subjected to stoplog panel size and dimension
-
Custom made to requirement

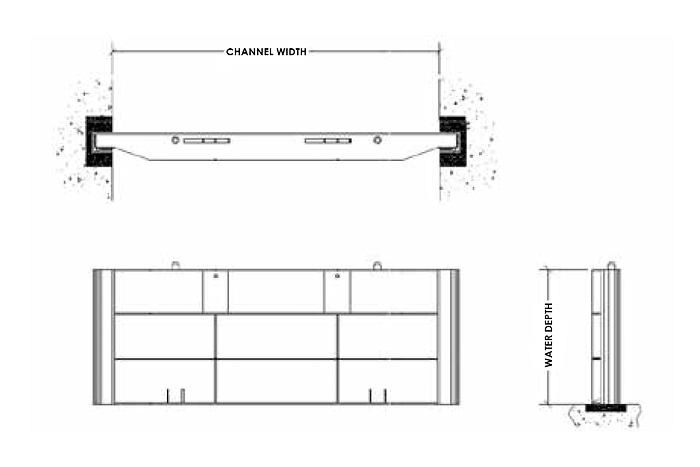

STANDARD CONSTRUCTION MATERIAL
DESCRIPTION
Frame
Logs
Side Seal
Bottom Seal
Slider
Log Locking System
Seal and Slides Locks
Intermediate Seal
​
​
:
:
:
:
:
:
:
:
MATERIAL
Stainless Steel 304L / 316L / Mild Steel S275JR
Mild Steel S275JR
EPDM
EPDM
HMWPE
Stainless Steel 304L / 316L
HMWPE
EPDM
​
